500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour

Name: 500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour
Brand: ULTRAMAX HYDROJET PVT. LTD.
Price: 1300000.0 INR
Availability: InStock

Price 1300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour Specification

Load Capacity
500 Kg

Finish
Smooth Finish

Material
Stainless Steel

Shape
Rectangular

Thickness
5 mm

Surface Treatment
Polished

Standard
Industrial Grade

Application
Tray and Bin Cleaning for Food Processing Industries

Water Consumption
120-150 Litres per cycle

Noise Level
Below 75 dB

Control System
PLC Based Automation

Conveyor Speed
Adjustable

Production Capacity
100 Bins / Hour

Dimensions
2850 mm x 1050 mm x 1620 mm (L x W x H)

Cycle Time
~35 Seconds per Bin

Heating Source
Electric

Pump Capacity
1.5 HP

Mobility
Fitted with Lockable Wheels

Power
24 KW

Chamber Type
Single Chamber with Multiple Stages

Voltage
415 V, 3 Phase

Weight
Approx. 980 Kg

500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

About 500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour

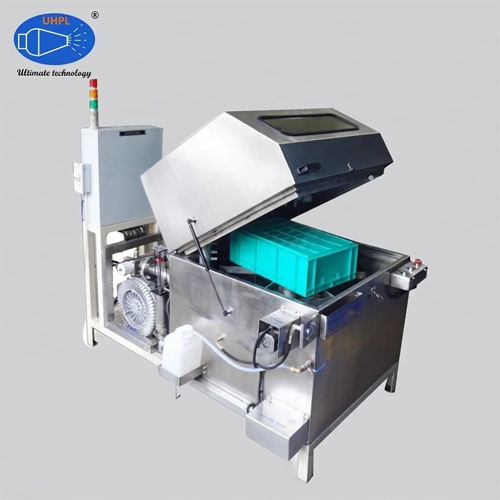

The Ultramax Hydrojet 500Kg Tray Cleaning Machine is a robust, automatic industrial washer (24 KW) designed for high-capacity cleaning (100 bins/hour), ideal for crates, trays, and bins. Featuring stainless steel (SS 304) construction and high-pressure spray nozzles, it offers reliable, efficient, and hygienic, single-stage washing and drying in one unit.

Key Features :

High Performance: Designed to handle 100 bins/hour, ensuring rapid cleaning cycles for industrial, food-grade, or pharmaceutical applications.
Robust Construction: Built with SS 304 material to withstand harsh industrial environments, ensuring durability and compliance with hygiene standards.
Automatic Operation: Equipped with PLC/HMI for automatic front-loading operation, reducing manual labor and increasing consistency.
Efficient Cleaning System: Utilizes a high-pressure spray nozzle system (190 Lpm) with a 250 L tank capacity for thorough dirt and grease removal.
Space-Saving Design: Engineered for compact installation, making it suitable for factories with limited floor space.
Drying Capability: Includes hot air blowing for quick drying of containers post-wash.
Versatile Application: Ideal for industrial washing of plastic trays, bins, crates, and component boxes.

Industrial-Grade Bin and Tray Cleaning

This tray cleaning machine is tailored for food processing environments demanding high cleanliness and efficiency. With a load capacity of 500 Kg and rapid throughput of up to 100 bins per hour, it keeps pace with busy production lines. The robust stainless steel build, reinforced by a 5 mm thickness and polished surface, ensures resilience and ease of maintenance even under strenuous use.

Smart Automation for Streamlined Operation

Equipped with a PLC-based control system, the machine offers highly automated, user-friendly operation. The adjustable conveyor speed and single-chamber multiple-stage cleaning cycle increase productivity without compromising quality. With cycle times as quick as 35 seconds per bin and minimal noise emission, the machine supports streamlined, ergonomic workflows.

Efficient and Hygienic Cleaning

Using a powerful electric heating source and a 1.5 HP pump, the tray cleaner ensures consistent, thorough cleaning across all surfaces. Water consumption per cycle is kept within 120-150 liters, balancing hygiene standards with resource efficiency. The machine's design prioritizes hygiene, making it ideal for applications that require strict cleanliness.

FAQ's of 500Kg Tray Cleaning Machine ne, 24 KW, Production Capacity: 100 Bins / Hour:

Q: How does the 500Kg Tray Cleaning Machine operate?

A: The machine utilizes a single chamber with multiple cleaning stages, driven by a PLC-based automation system. Bins or trays are loaded, and the cycle is initiated, following a set cleaning, rinsing, and drying sequence. The adjustable conveyor speed and automated controls ensure optimal cleaning with minimal effort.

Q: What types of trays and bins can be cleaned with this machine?

A: Designed primarily for the food processing industry, the machine is capable of cleaning a wide range of trays and bins within the specified load capacity (up to 500 Kg). Its dimensions and sturdy construction support most standard-sized bins used in industrial food processing plants.

Q: When is the best time to perform maintenance on the tray cleaning machine?

A: Routine maintenance should be scheduled based on usage frequency and the manufacturer's guidelines. Generally, it is advisable to conduct basic cleaning and inspection after each day's operation and comprehensive maintenance checks on a monthly basis to ensure optimal performance.

Q: Where is this machine best utilized?

A: This tray cleaning machine is ideal for use in food processing facilities, commercial kitchens, and other industrial environments where high standards of hygiene and rapid throughput are required. Its mobility allows for flexible placement within production areas as needed.

Q: What is the step-by-step process for cleaning bins or trays using this machine?

A: First, load bins or trays onto the conveyor. The automated system moves each item through the single chamber, where it passes through multiple cleaning, rinsing, and drying stages. The cycle is completed in approximately 35 seconds per bin, and cleaned items are ready for immediate reuse.

Q: How much water does the machine consume per cycle?

A: The water consumption per cycle ranges between 120-150 liters, depending on the cleaning program and bin load. This efficient usage helps maintain hygiene standards while minimizing resource consumption.

Q: What are the main benefits of using the 500Kg Tray Cleaning Machine?

A: Major benefits include high cleaning speed, reliable hygiene, reduced manual labor, and resource efficiency. Its robust construction and advanced control systems minimize downtime and maintenance, thereby enhancing productivity and operational efficiency in food processing operations.
