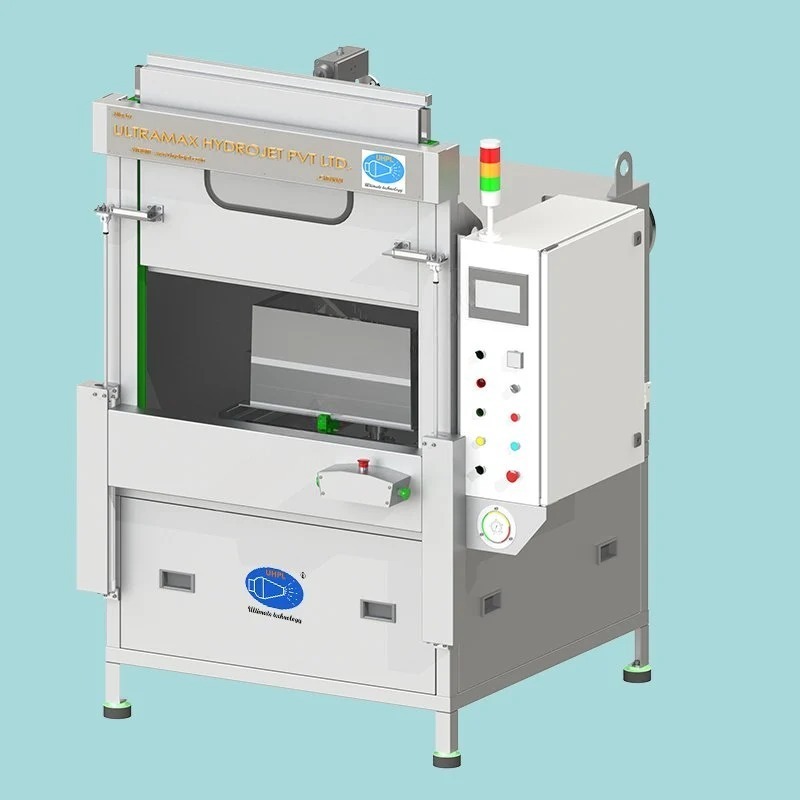

Send InquirySS 9 Feet Filter Cleaning Drying Booth
Price 1700000.0 INR/ Unit
MOQ : 1 Unit
SS 9 Feet Filter Cleaning Drying Booth Specification
- Application
- Industrial filter cleaning and drying
- Dimension (L*W*H)
- 2700 mm x 1000 mm x 2200 mm
- Filter Type
- Cartridge / Panel
- Type
- Filter Cleaning Drying Booth
- Lighting
- LED Explosion proof lights
- Air Flow
- 1800 - 2200 m3/h
- Frame Material
- Stainless Steel
- Power Consumption
- 1.5 kW
- Floor
- SS grated floor with collection tray
- Feature
- Low noise, easy maintenance, corrosion resistant
- Nozzle
- Adjustable air jet nozzles
- Air Volume
- 1800 m3/h
- Condition
- New
- Voltage
- 220-240 V, 50 Hz
- Filters
- Pre filter and HEPA filter
- Weight
- Approx. 300 kg
- Door
- Front access, SS fabricated double doors
- Thickness
- 1.5 mm SS Sheets
- Material
- Stainless Steel (SS 304)
- Surface Treatment
- Electropolished or brushed
- Cleaning Method
- Manual and pneumatic options
- Mobility
- Heavy-duty caster wheels for easy movement
- Blower Type
- Centrifugal Blower with Vibration Isolators
- Air Curtain
- Integrated at entry for dust restriction
- Finish
- Matt / Mirror finish available
- Safety
- Emergency stop switch, overload protection
- Sound Level
- Below 75 dB
- Installation
- Plug and play, minimal installation required
- Control Panel
- Digital PLC based control panel
SS 9 Feet Filter Cleaning Drying Booth Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Week
- Delivery Time
- 1 Week
About SS 9 Feet Filter Cleaning Drying Booth
Filter Cleaning Drying Booth- Our HVAC Automatic AHU Pre-Filter Cleaning & Drying Machine is meticulously engineered for the pharma industries to maintain the optimal air quality by efficient Cleaning and Effective drying of AHU Pre-Filters with control and monitoring system.
- This Machine Manufactured with strict compliance of cGMP Norms and also fully meet out the FDA Audit Requirements and regulatory requirements in HVAC systems.
- This specialized machine manufacture in such a way to achieve through cleaning which eliminate the cross contaminations.
- This specialized machine manufacture in such a way to achieve effective drying which eliminate the Micro biological growth in the Filter after Washing and the dryness level is validating in the machine itself.
- This automating cleaning process which totally eliminate the human intervention towards cleanliness.
- We are having a dedicated R & D team who regularly updating the machine standards and requirements according to the market requirements.
ADVANTAGES :
Fully automatic Cleaning Process hence process control is too High Productivity will increase Cleaning & drying process in a closed same single chamber Drying Efficiency will be very high Reduced manpower fatigue.
Advanced Airflow and Cleaning Technology
Utilizing a centrifugal blower, this booth delivers an air volume of 1800 m3/h, which-combined with pre-filter and HEPA filtration-ensures comprehensive removal of dust and contaminants. Adjustable air jet nozzles allow for precision cleaning, and the integrated air curtain at the entry restricts dust migration, maintaining a clean environment inside and outside the booth.
Stainless Steel Durability and Hygiene
Built from premium SS 304 with a matt or mirror finish and electropolished or brushed surface treatment, the booth resists corrosion and supports hygienic operation. The robust construction ensures longevity, while the SS grated floor with a collection tray facilitates simple waste management, keeping the area neat and safe for continued industrial activity.
Designed for Easy Operation and Safety
The digital PLC-based control panel allows for intuitive operation with manual or pneumatic cleaning methods. Emergency stop switches and overload protection are integrated for safety. The booth's heavy-duty caster wheels and plug-and-play installation offer immediate use and flexible placement within your industrial setup.
FAQ's of SS 9 Feet Filter Cleaning Drying Booth:
Q: How does the SS 9 Feet Filter Cleaning Drying Booth enhance the filter cleaning process?
A: This booth streamlines filter cleaning by combining a powerful centrifugal blower with adjustable air jet nozzles and both manual and pneumatic cleaning methods. The integrated air curtain maintains dust control, while the PLC digital control panel ensures precise and efficient operation, making the cleaning process thorough and less labor-intensive.Q: What safety features are included in this booth to protect operators?
A: Operator safety is prioritized with features like an emergency stop switch and overload protection. The booth also uses explosion-proof LED lighting and has a sound level below 75 dB, ensuring a safe and comfortable working environment during operation.Q: When should I use the filter cleaning booth, and for what types of filters is it suitable?
A: The booth is suited for regular maintenance schedules or whenever industrial cartridge or panel filters require cleaning and drying. Its robust design makes it compatible with most industrial filters, facilitating the extension of filter life and maintaining optimal equipment performance.Q: Where can the booth be installed, and is it easy to move?
A: Thanks to its plug-and-play design and heavy-duty caster wheels, this booth can be installed in virtually any industrial setting with minimal effort. The mobility allows it to be repositioned as needed to different locations within a facility.Q: What is the process for cleaning filters inside the booth?
A: Filters are placed inside the booth on the grated SS floor. Once secured, the operator uses the adjustable air jet nozzles-via manual or pneumatic control-to clean the filters thoroughly. Collected debris drops into the tray below for easy removal.Q: How does the booth's construction benefit long-term industrial usage?
A: Constructed from 1.5 mm thick SS 304, the booth is corrosion-resistant and built for durability. The electropolished or brushed finishes enhance cleanliness, while the sturdy frame and double SS doors ensure longevity and safety in demanding industrial environments.Q: What are the primary advantages of the integrated air curtain at the entry?
A: The air curtain at the entry effectively restricts dust particles from leaving or entering the booth during cleaning operations, ensuring both the workspace and surrounding environment remain clean. This feature supports hygiene and prevents cross-contamination in industrial plants.
