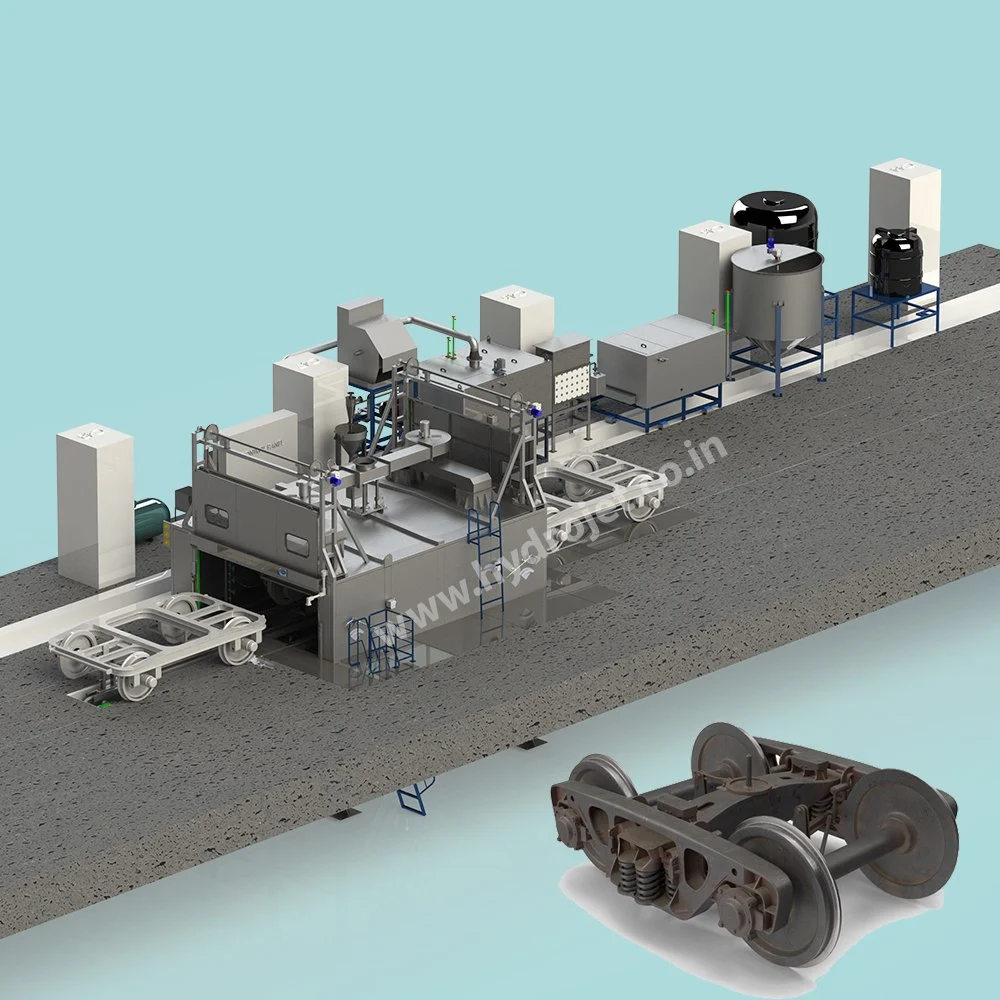

Railway Bogie Washing Plant

• Accessories
• High Pressure Nozzles, Filtration System, Water Recycling Unit

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 500 Kg

• Color
• Industrial Grey/Blue

• Computerized
• Yes

• Control System
• Other, PLC Based Control Panel

• Dimension (L*W*H)
• 4000 mm x 2200 mm x 2000 mm

• Drive Type
• Other, Electric Motor Driven

• Driven Type
• Electric

• Efficiency (%)
• Up to 98%

• Features
• Front Loading, Robust Construction, High Cleaning Efficiency, User-Friendly Interface, Rust Proof

• Frequency
• 50 Hz

• Installation Guideline
• Floor Mounted, Requires Level Surface

• Machine Type
• Front Loading Cleaning Plant

• Material
• Stainless Steel

• Model No
• ABC-500FL

• Motor Power
• 7.5 HP

• Power
• 7.5 kW

• Power Consumption
• 7.5 Units/hour

• Production Capacity
• 10-12 Bogies per Hour

• Speed
• Variable, up to 15 m/min

• Surface Finish
• Other, Powder Coated

• Temperature Range
• Ambient to 60C

• Type
• Automatic Bogie Cleaning Plant

• Usage & Applications
• Railway Bogie Cleaning

• Voltage
• 415 V AC, 3 Phase

• Weight (kg)
• Approx. 1400 kg

• Accessories
• High Pressure Nozzles, Inlet & Outlet Hose, Water Recycling Unit (Optional)

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 500 Kg

• Color
• Industrial Grey/Custom

• Computerized
• Yes

• Control System
• Other, PLC Based

• Dimension (L*W*H)
• 2200 x 1500 x 1800 mm

• Drive Type
• Electric

• Driven Type
• Electric

• Efficiency (%)
• 98%

• Features
• High Pressure Cleaning, Energy Efficient, Eco-Friendly, Safety Interlocks, Easy Maintenance

• Frequency
• 50 Hz

• Installation Guideline
• Foundation Required, Professional Installation Recommended

• Machine Type
• Front Loading

• Material
• Stainless Steel

• Model No
• ABWP-500FL

• Motor Power
• 7.5 HP

• Power
• 7.5 kW

• Power Consumption
• 7.5 kW/hr

• Production Capacity
• 6-8 bogies/hour

• Speed
• Adjustable

• Surface Finish
• Other, Powder Coated

• Temperature Range
• Ambient to 70C

• Type
• Automatic Bogie Washing Plant

• Usage & Applications
• Railway Bogie Washing

• Voltage
• 415 V AC

• Weight (kg)
• Approx 500 kg
